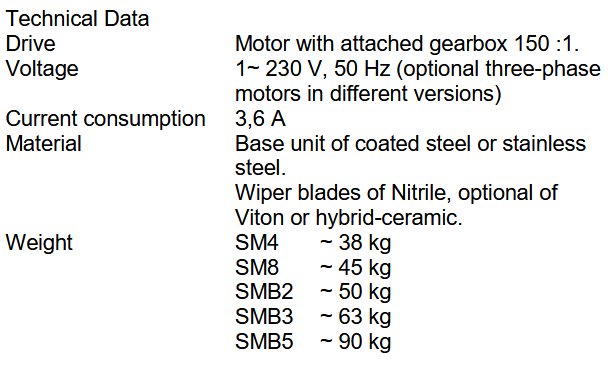

BELT OIL SKIMMER Model SM4, Model SM8 and Model SMB

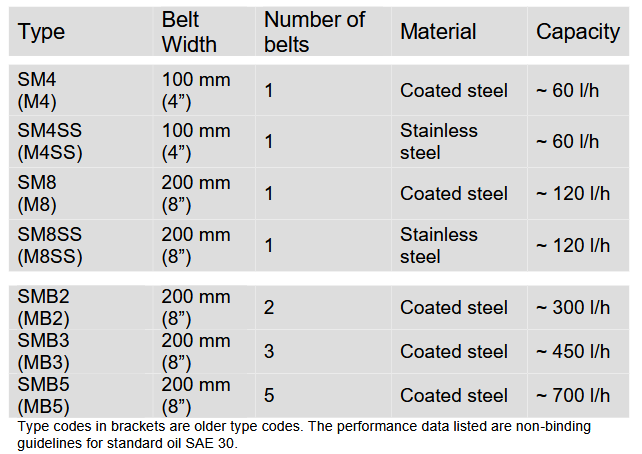

These belt skimmers do not have a stabilizer bar but the belt is hanging on the tail pulley and the weight of the pulley provides the needed tension of the belt. By means of this design any individual belt length can be realized. Oil separation capacity and material of drive unit Depending on the needed capacity first you choose a skimmer with a 100 mm wide belt or with a 200 mm wide belt. For higher capacities there are multi-nelt arrangements available. The separation capacity mainly depends on the belt width whereas the capacity does not depend on the belt length. The drive unit is available in coated steel and in stainless steel.

• Belt length
  The belt length is determined as the single distance between the upper and the lower pulley. When the level of the fluid is changing the tail pulley should be ubmerged all the time.
• Belt material
  Belts are available in stainless steel, elastomer and polymer.
• Options, accessories
  We can provide the skimmers with air motors, infrared heaters and some more options. An oil concentrator can be directly fitted to provide a virtually complete oil/water separation.

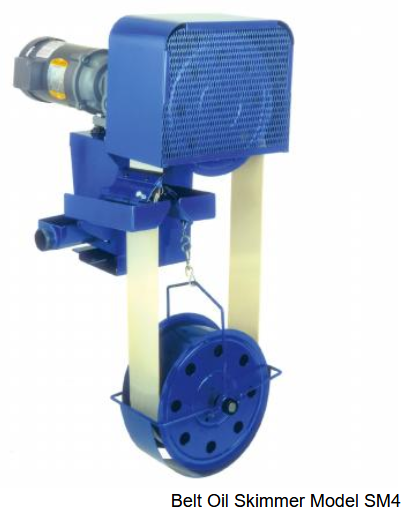

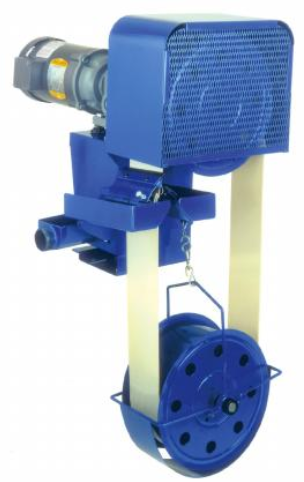

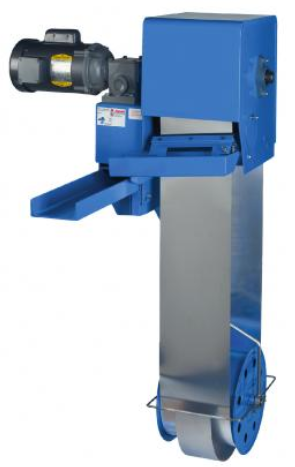

Belt Oil Skimmer Model SM4

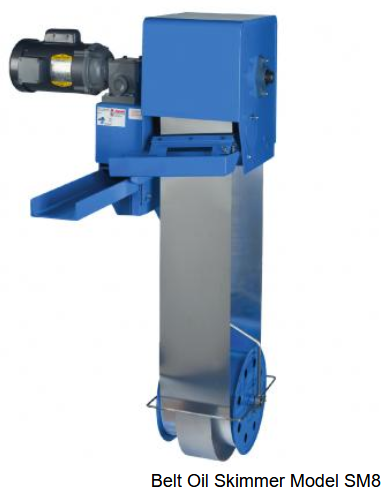

Belt Oil Skimmer Model SM8

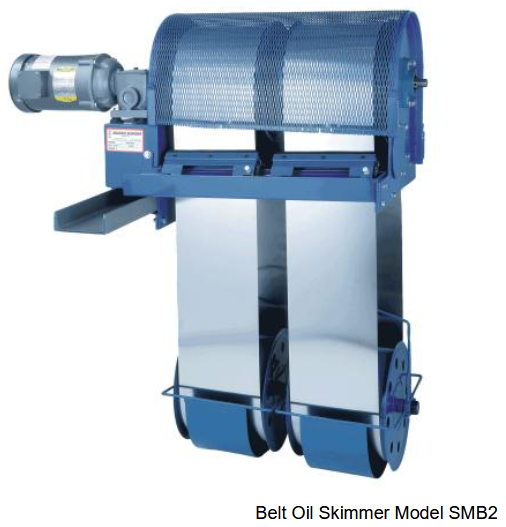

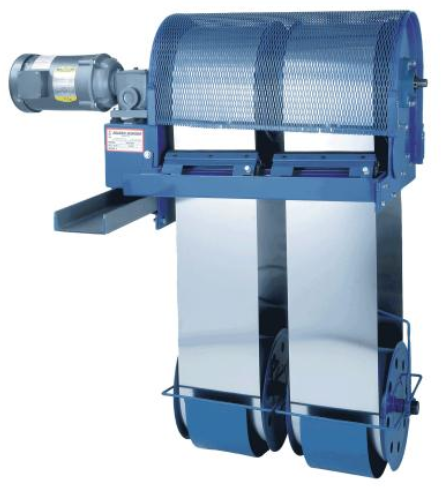

Belt Oil Skimmer Model SMB2

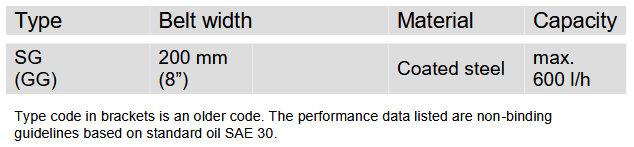

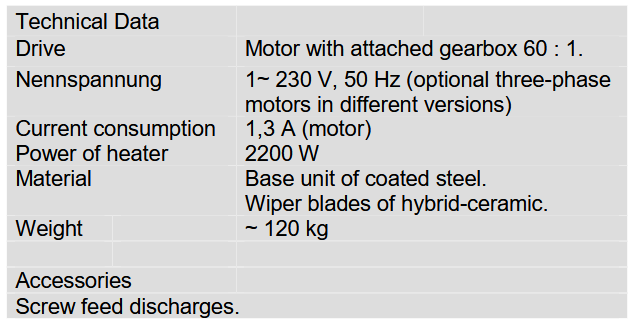

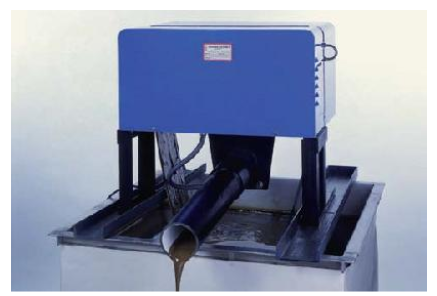

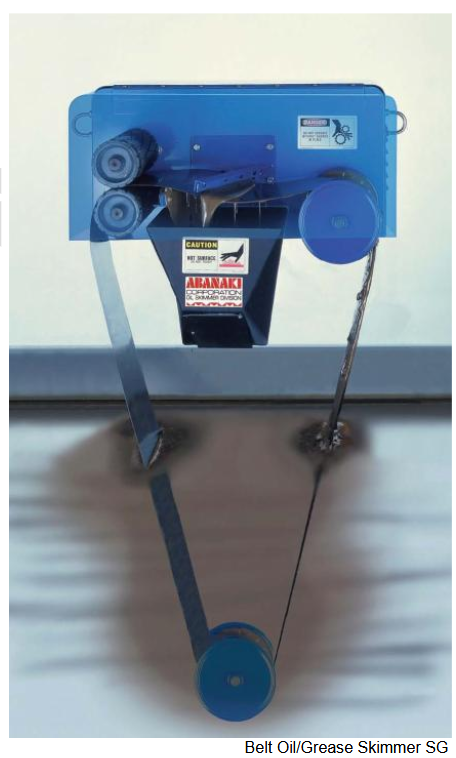

BELT OIL AND GREASE SKIMMER GREASE GRABBER

The patented Grease Grabber was developped for the removal and discharge of oil and non-flowing grease at ambient temperature. The main feature is a heated and big dimensioned outlet hopper to provide the drainage of oil and grease. The Grease Grabber was designed for heavy-duty applications such as in steel mills.
